1.2m/S High Speed Spiral Door

    Buy cheap 1.2m/S High Speed Spiral Door from wholesalers

    Buy cheap 1.2m/S High Speed Spiral Door from wholesalers
    • Buy cheap 1.2m/S High Speed Spiral Door from wholesalers
    • Buy cheap 1.2m/S High Speed Spiral Door from wholesalers
    • Buy cheap 1.2m/S High Speed Spiral Door from wholesalers
    • Buy cheap 1.2m/S High Speed Spiral Door from wholesalers
    • Buy cheap 1.2m/S High Speed Spiral Door from wholesalers

    1.2m/S High Speed Spiral Door

    Ask Lasest Price
    Brand Name : Wuzuan
    Model Number : SD00026
    Price : USD1950-4850 per set
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300pcs per month
    Delivery Time : 8 -15days
    • Product Details
    • Company Profile

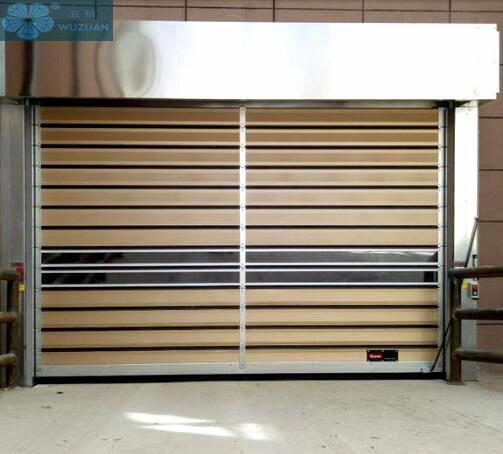

    1.2m/S High Speed Spiral Door

    Aluminum Alloy Material High Speed Security Door Spiral Rolling Shutter Fast Door


    Spiral insulated industrial doors are new, technologically advanced industrial high speed doors designed to better separate different working areas, characterised by a different acoustic and thermal intensity or intended for different uses.The high product quality is based on aesthetics and high performance in terms of safety and thermal-acoustic insulation.
    The spiral high speed doors are ideal both for internal use for the division of departments with different thermo-acoustic characteristics, and for external use ensuring security and weatherproof.

    Fields of applications

    Fields of applications:

    – Civil use, such as garage doors
    – refrigeration, requiring maximum thermal insulation and fast opening and closing operations.
    – any type of industry that requires air flow between different environments (such as garages and multi-storey car parks), a problem that can be solved by high speed spiral door


    Feature:


    1, Excellent quality, reliability and safety, as stated by our patents and certificates
    2, Great versatility, flexibility and structural strength
    3, Small footprint
    4, Noiseless opening and closing system
    5, High thermal conductivity
    6, Wind resistance
    7, Designed to solve different industrial logistics problems
    8, No ceiling anchor, unlike traditional sectional doors
    9, Simple design
    10, No extraordinary maintenance required, just the ordinary maintenance required by the rules in force
    11, Easy to install
    12, Easy and fast handling operations (means, materials and people)
    Motor :
    High speed spiral rolling shutter door can be equipped with servo motor and three-phase asynchronous motor, and canprovide domestic or imported motor according to customer requirements.

    The advantage of servo motors
    1.Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step
    2.The speed: high-speed performance is good, the general rated speed can reach 2000 ~ 3000 rpm
    3. Adaptability: It has strong anti-overload capability and can withstand three times the rated torque. It is especially suitable for occasions with transient load fluctuations and quick start.
    4. Stable: It runs smoothly at low speed, and does not produce stepping operation similar to stepper motor when running at low speed. Suitable for occasions with high speed response requirement.
    5. Timeliness: The dynamics of motor acceleration and deceleration are short, generally within tens of milliseconds.
    6.Comfort: heat and noise are significantly reduced.
    Detail Information:
    Opening Speed0.7 ~ 2m/s
    Interior / Exterior DoorSuitable
    MaterialAluminum Slat, Double Layer with PU Foaming Core
    Max Width7000mm
    Min/Max H1200mm / 7000mm
    Door Curtain Thickness40mm Total thickness
    Drive UnitElectric / IP55
    Safety SensorElectric safety edge
    Safety photovell
    Control voltage 24V DC
    Motor BrandSEW German
    Servo System China
    Control BrandMitsubishi Japan
    Servo China
    Command SystemRemote control, Radar sensor, Floor sensor, Rope switch, Key cards etc

    Why Choose Us?

    Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

    Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

    F A Q :

    1,Are you trading company or manufacturer ?

    A: We are factory.
    2. What's the payment details?
    Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
    3. What's the delivery time?
    For common order, about 15 days only.
    4. What about the warranty for the doors?
    We provide 12 months warranty for all doors and accessories.
    5. Do you provide OEM Service?
    Yes. OEM & ODM Service is ok for us.
    6. What's the MOQ?
    We accept 1 set as sample order.
    7. How about the package?
    Plywood case, suitable for sea freight or air freight, as your request.
