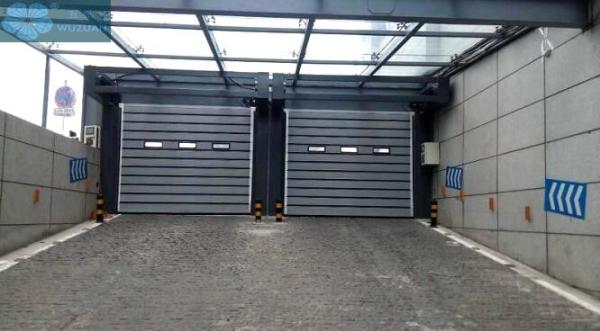

Rapid Aluminum Security Thermal Insulated Energy Saving Rolling up Coiling Spiral High Speed Door For Garage

High speed with turbine motor door is a new matal industrial door, which is used to keep warm, energy-efficient, seal, efficient, anti-wind, and green products, the highest speed of open can up to 2.5m/s, apply to high frequented logistics channel for quick pass.

Main Features:
High Speed,Automatic,security,heat preservation,durable.

Application Scope:
The door is applied to the outdoor passage for quick pass.

Advantage:

1. Opening speed up to 2.5m/s, Closing speed up to 0.6~0.8m/s, Allow for improved traffic flow and enhanced customer perception.
2. Counterbalance system, spiral design reduce wear and increase door longevity, with minimal preventative maintenance.3. No metal to metal contact reduces wear on the door panel and offers fast, quiet operation.

Packing & Delivery:

Packing Details : Packing, Plywood case, 1 door 2 carton
Delivery Details : About 15 days after order of door

Technical Data:

Item	Description
Mateiral	Aluminum Alloy Profile(PU Sandwich optional) & Transparent PVC Section
Thickness of Material	Double-layer Aluminum profile 0.8mm ~ 2.5mm
Thickness of Panel	40mm ~ 70mm
Foam Density	≥ 50kg / m3
Speed	Open / Close to max : 2.5 / 0.7 m/s
Wind Resistance	Beaufort scale 12 (35 m / s)
Color:	White / Grey / Sliver / Blue / Red / Customer-tailor
Noise Level:	< 60dB
Lifting way	90°Vertical Lift / Turbo Type / Ellipse Type
Max Dimension	5000*7500 MM
Heat preservation	K ≤ 1.5W/(m2•K)
Drive System	Brake Motor or Servo Motor SEW / ABB Brake Motor, 220V 50HZ / 380V 50HZ, 0.75Kw, 1.1Kw,1.5Kw,2.2Kw
Control System	Inverter Type or Servo Type
Service Life	> 10 Years
Safety	1) Photocell Sensor 2) Airbag Installed at Door Edge Bottom (BUTTERFLY Pressure Wave Sensor)

What is the unique feature of high speed doors?

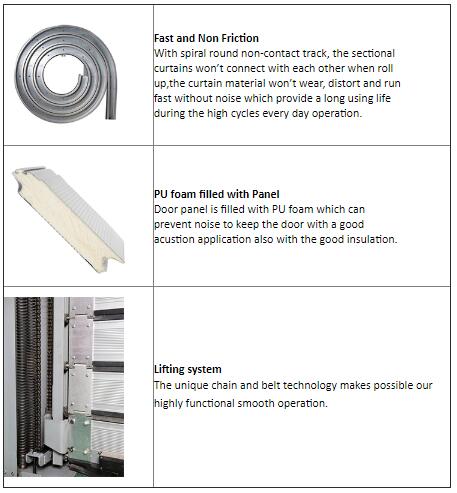

1) Aluminum Alloy lathes and foam inserted and viewing windows as standard

2) Emergency handle equipment for surviving

3) Given frictionless for lathes operation to longer the using life

4) Weight balance with springs and belt

5) Basically no maintenace on the whole door

6) Good combination of outside door application and high cycle operation in warehouse

7) Smooth and fast delivery in the logistics area of factory

8) Lower your production cost including air condition expense and temperature difference

9) No more installation demand(choose rolling back or oval for space limitation)

10) Fast lead time to meet the fast and quick delivery

Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

F A Q :

1,Are you trading company or manufacturer ?
A: We are factory.

2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

3. What's the delivery time?
For common order, about 15 days only.

4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.

5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

6. What's the MOQ?
We accept 1 set as sample order.

7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
