Automatic 1.2m/S 5m Width Security Shutter Doors

    Buy cheap Automatic 1.2m/S 5m Width Security Shutter Doors from wholesalers

    Buy cheap Automatic 1.2m/S 5m Width Security Shutter Doors from wholesalers
    • Buy cheap Automatic 1.2m/S 5m Width Security Shutter Doors from wholesalers
    • Buy cheap Automatic 1.2m/S 5m Width Security Shutter Doors from wholesalers
    • Buy cheap Automatic 1.2m/S 5m Width Security Shutter Doors from wholesalers
    • Buy cheap Automatic 1.2m/S 5m Width Security Shutter Doors from wholesalers

    Automatic 1.2m/S 5m Width Security Shutter Doors

    Ask Lasest Price
    Payment Terms : L/C, Western Union, MoneyGram
    Supply Ability : 300pcs per month
    Delivery Time : 7-15days
    Brand Name : Wuzuan
    Model Number : PHSD-0003
    • Product Details
    • Company Profile

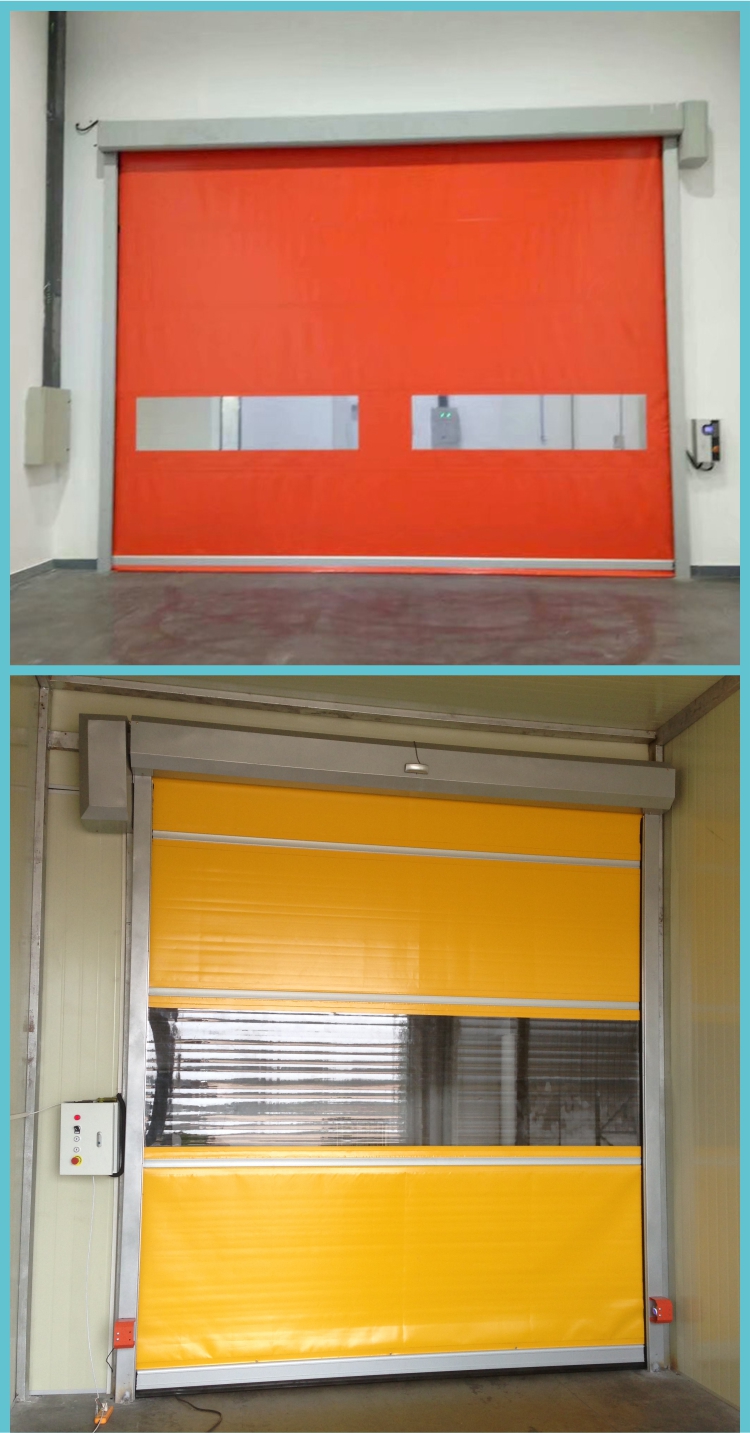

    Automatic 1.2m/S 5m Width Security Shutter Doors

    Industrial Automatic PVC Fabric High Speed Performance Fast Acting Rapid Rise Overhead Quick Roll up or Roller Shutter Door for Warehouse Exterior or Interior


    By drawing lessons from foreign advanced technology and integrating the advantages of domestic products in the same industry,
    PVC High speed rolling door is basically one of the high-tech products independently developed.It has the functions of quick opening and closing, improving work efficiency,
    saving energy, preventing mosquitoes, wind and dust, odor and lighting.It is specially designed and manufactured for the internal workshop,
    the sanitary environment and the high frequency logistics channel.


    What is the charactor of automatic high speed pvc door?
    1)Easy cleaning for their stainless steel frame.
    2)Less air consumption with double door frame. The inner frame is close to the door curtain and the rubber bottom has the best sealing charactar.
    3)Less bacteria growth for the best sealing solution without brush in the frame.
    4)More durable due to the stainless frame material especially for pharmacy , food industry.
    5)More softer inner frame ensures less-wear.
    6)Controlling box with the screen-display.

    Fast door motor:

    High frequency start and stop fast door motor, 380V or 220V or 110V / 50HZ or 60HZ ,0.75KW / 1.1KW / 1.5KW

    Servo control box:

    Servo system control box, international electrical safety standard

    Curtain wind strip:

    T60 high-strength oxygen-resistant aluminum alloy wind-resistant strip, unique noise-reducing structure, can resist 8 winds

    Title goes here:

    The use of Baosteel's cold steel plate with a thickness of 2.0mm indicates that the use of outdoor special weather resistant imported plastic powder electrostatic spraying.

    Pvc curtain:

    PVC double-coated wear-resistant base fabric, thickness 0.9mm

    Safety protection:
    Photoelectric sensor. When there is a person or vehicle under the door, the door will stop closing and automatically rise. This can avoid accidental collisions.
    Radar sensing:
    When objects inside and outside the door enter the sensing area, the door automatically opens, and when objects leave the sensing area, the door automatically closes, and the sensing is sensitive and fast.
    Encoder limit switch:
    Multi-turn absolute encoder limit, clock-like principle design, ultra-high precision.
    Main Features:
    Using locationInternal/External Door
    Door curtain material0.8 mm thick PVC with transparent PVC stripe
    Door frameStandard galvanized steel(option: 304 stainless steel)
    Door control systemServo control system
    Self Trouble-Shooting Recognizing system
    Door designingDesigned for a long run and reasonable price
    Door operationHigh frequency motor with converter
    Safe EquipmentBeep, Anti-wind Bar, Traffic Light, Wireless safety Edge
    Motor locationon both sides are ok
    Safety equipmentsStandard light barriar
    Door max size5m(W)x5m(H)
    Wind load max11m/s
    Opening speed1.2m/s
    Closing speed0.6m/s
    Optioninduction loop, radar, pull-cord, push button, remote control

    Why Choose Us?

    Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

    Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.


    F A Q :

    1,Are you trading company or manufacturer ?

    A: We are factory.
    2. What's the payment details?
    Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
    3. What's the delivery time?
    For common order, about 15 days only.
    4. What about the warranty for the doors?
    We provide 12 months warranty for all doors and accessories.
    5. Do you provide OEM Service?
    Yes. OEM & ODM Service is ok for us.
    6. What's the MOQ?
    We accept 1 set as sample order.
    7. How about the package?
    Plywood case, suitable for sea freight or air freight, as your request.
