1mm Curtain 95mm Bottom Bar Roller Shutter Doors For Warehouse

    Buy cheap 1mm Curtain 95mm Bottom Bar Roller Shutter Doors For Warehouse from wholesalers

    Buy cheap 1mm Curtain 95mm Bottom Bar Roller Shutter Doors For Warehouse from wholesalers
    • Buy cheap 1mm Curtain 95mm Bottom Bar Roller Shutter Doors For Warehouse from wholesalers
    • Buy cheap 1mm Curtain 95mm Bottom Bar Roller Shutter Doors For Warehouse from wholesalers
    • Buy cheap 1mm Curtain 95mm Bottom Bar Roller Shutter Doors For Warehouse from wholesalers
    • Buy cheap 1mm Curtain 95mm Bottom Bar Roller Shutter Doors For Warehouse from wholesalers

    1mm Curtain 95mm Bottom Bar Roller Shutter Doors For Warehouse

    Ask Lasest Price
    Brand Name : Wuzuan
    Model Number : HSSD-0001
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500sets per month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    1mm Curtain 95mm Bottom Bar Roller Shutter Doors For Warehouse

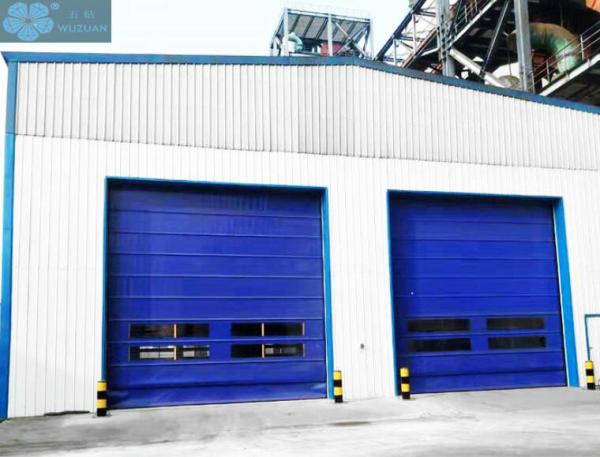

    Automatic Stacking Rolling PVC High Speed Door For Warehouse


    Stacking rapid door fit for big door opening size (more than 6m*6m)and also have the requirement of the door opening and close speed. This door have great wind resistence.


    Features:
    Wind resistence:
    There are several high-strength aluminum rod were used to connect PVC fabric as a whole. When faced with big wind, such rods will offer big support. Special belt structure is adopted to lift door up and down by revolving roller.


    Door Details:


    1, Driving system features:
    Stable and easy to do the wire connection.

    The motor and control box are perfectly compatible, its a complete whole set with the advanced Italian servo technology.
    This new integrated design, Improve the electromagnetic interference existing in the complex wiring of the original PLC+ inverter + encoder, avoiding the fault caused by the wiring and plug.
    Soft open and close, make the door have great work life.
    2, Easy to operate
    The interface control panel will make the door more easy to adjust ,it can realize all kinds of function by adjust it.
    3, Door curtain:
    variety of colors are available.
    4, Steel Structure:
    Powder coated galvanized steel .1.5mm for Top cover and motor cover .2.0mm for guide rail.
    2.0mm 304 stainless steel.

    5, Safety device:
    Bottom soft edge airbag sensor
    Photo sensor
    Alarm light.
    6 .Different operation methods to meet different needs of the customer.
    Product Details:
    PVC FabricFabric Color: Blue/White/Green/Yellow/Orange/Red/Transparent or customized
    Color curtain: 0.8 - 1.2mm thickness.
    Transparent curtain:1.2mm.
    Function: :insect prevention
    Door Frame201/304 Stainless Steel/Galvanized Steel
    Bottom BarAluminum alloy 95mm width
    Function: reinforce the crutain to keep the door opening without a hitch
    Radar SensorThe place on the cover box. Can detect 3 meters area!
    Function: detect the moving thing and open the door.
    For the place which has more people through.
    Photocell SensorFunction:It's stop the door when the door is closing and someone through the door.
    Drive SystemHigh speed door motor: Germany brand(SEW) or China brand
    Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.)
    Control SystemControl box:Include control system+PLC+transducer+encoder+airbag system.
    Brand: China Brand or customized
    Function: all the control system are inside in it.
    Cover BoxMaterial: Stainless steel201#or304#
    To avoid corrosive thing corrode the roll and dustproof
    Opening WayRadar sensor+push button for People through
    Magnetic loop+push button for forklift through
    Running SpeedOpen Speed:0.8-1.5 m/s
    Close Speed:0.6 - 1.0 m/s

    Why Choose Us?


    Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

    Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.


    F A Q :

    1,Are you trading company or manufacturer ?

    A: We are factory.
    2. What's the payment details?
    Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
    3. What's the delivery time?
    For common order, about 15 days only.
    4. What about the warranty for the doors?
    We provide 12 months warranty for all doors and accessories.
    5. Do you provide OEM Service?
    Yes. OEM & ODM Service is ok for us.
    6. What's the MOQ?
    We accept 1 set as sample order.
    7. How about the package?
    Plywood case, suitable for sea freight or air freight, as your request.
