    Steel Structure 1.5KW 0.8mm Curtain Roller Shutter Doors

    Ask Lasest Price
    Brand Name : Wuzuan
    Model Number : HSSD-0002
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500sets per month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Steel Structure 1.5KW 0.8mm Curtain Roller Shutter Doors

    Industrial Wind Resistant Fabric Stacking PVC Rolling Steel Structure Lifting Folding Flexible Security Door

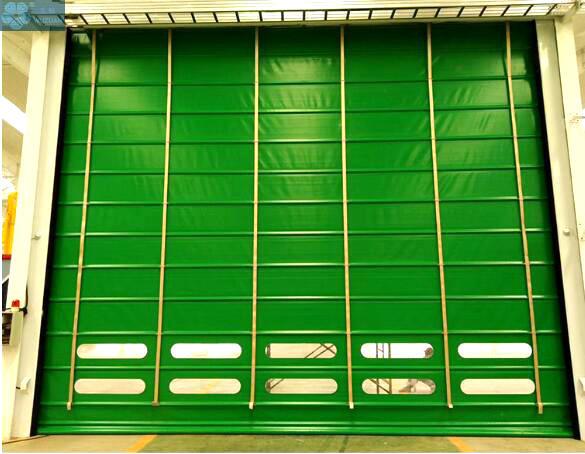

    Stacked high speed door is a new generation door that used in large buildings. It has the good windproof function,with the steel tube in side,Which can greatly resist the wind

    Features:
    This door is with excellent wind-resistant performance, fit for areas with big wind pressure and door hole sizes. Several
    high-strength aluminum rod is used to connect PVC fabric as a whole. When faced with big wind, such rods will offer big
    support. Special belt structure is adopted to lift door up and down by revolving roller.
    The advantage of Self Reparing High Speed Doors are self-reparing,easy to clean,complete safe,energy saving and so on.
    If the door curtain comes out of its guides(for example in the event of impact with a forklift),the system will reset the cutrain back intp the guide during the next opening cycle autimatically

    Motor System:
    Power Supply: 0.75kw, 1.5kw, 2.2kw
    The incremental encoder mounted is attached to the end of the drum shaft.

    Self-Repairing Door Curtain:
    Made of reinforced PVC, with flexible weighted soft bottom edge.
    The edge of curtain has continuous injection molded teeth that then move up and down in a self-lubricating polyethylene track attached to structural galvanized side frames.

    Opening Way
    Forklift cross --Magnetic loop with push button
    People cross --Radar sensor with push button
    Photocell sensor/Airbag to avoid hurt people when the door closing and someone cross.

    Technical Data:
    Door curtainVarious cladding material for options:
    a.Plastic polyester fiber with PVC/PU/Silicone rubber/PolyYaan ester coating
    b.Resistance to low temperature curtain for -45ºC environment
    c.Soundproof door curtain for environment that need to be reduced or isolated from noise
    d.Heat preservation curtain for environment that prevent thermal radiation or chemical damage
    e.Safety curtain is for higher environmental safety requirement
    Door KeelAluminum profile installed in the middle of door curtain to strengthen support
    Guide RailMaterial: Aluminum
    Sealing design of the inner and outer surface of guide rail
    Thickness of Door100-160mm
    Thickness of Curtain0.8+0.8mm
    Running Speed0.2~0.3m/s
    Running Temperature-35ºC to +70ºC
    Driving SystemMotor and gearbox,220V/380V 50Hz, power:1.6-3.7kW
    Control SystemControl box with PLC:The running of the door can be achieved by pressing the button on the control box or using the radar or magnet ring control with optional controls
    Optional ControlRadar,magnet ring,remote control,stretching wire switch,controller button,Interlocking
    Hoisting SystemThe lifting belt around the pulley is connected with the safety clamp along the vertical track. The pulley is mounted on the brake reducer.
    Waterproof Permeability3 level, EN12425 (door closed state)
    Wind Resistance3-5 grade,EN 12424 varies according to the size of the door
    Air Tightness2grade,EN12426
    SealingBottom, side and top seal
    SafetySafety Photo Sensor
    Proximity Sensor
    sound-light alarm system
    Accident-fall arrester safety system
